ASROCK J3355B-ITX CELERON 2,5GHZ DDR3/DDR3L SATA3 USB3.1 DVI VGA

ASROCK J3355B-ITX CELERON 2,5GHZ DDR3/DDR3L SATA3 USB3.1 DVI VGA
Prezzo:

64,40 IVA INCLUSA

:: Ritiro/Spedizione entro 48/72 ore ::
Cod. art.: 29629
Marca: ASROCK
Cod. produttore: 90-MXB3V0-A0UAYZ
Peso: 0,700 Kg
Unità di misura: PZ
Disponibilità: Disponibile
Quantità:

Feedback degli utenti

Descrizione


J3355B-ITX


ASRock Super Alloy

Intel Dual-Core Processor J3355 (up to 2.5 GHz)

Supports DDR3/DDR3L 1866 SO-DIMM

1 PCIe 2.0 x16 (x2 mode)


Graphics Output Options: D-Sub, HDMI


7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps


2 SATA3


5 USB 3.0 (2 Front, 3 Rear)


Supports Full Spike Protection, ASRock Live Update & APP Shop








Features










High Density Glass Fabric PCB


What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

High Density Glass Fabric PCB

Traditional Glass Fabric PCB








D-Sub, HDMI, Parallel, COM


Packed with a COM port + Printer port + D-Sub + HDMI combo. Plus the HDMI port supports Full HD 1080p Blu-ray (BD) playback.







HEVC 10-bit Decoding


Supports HEVC 10-bit decoding to provide substantially improved video quality and higher bit depth video experience. The 10-bit content supports up to 1.07 billion color palette, it can have more detail of image, and greater range between the brightest and darkest part of the image.


Banding

Smooth

Normal 8-bit
(16.7 Million Colors)

True 10-bit
(1.07 Billion Colors)

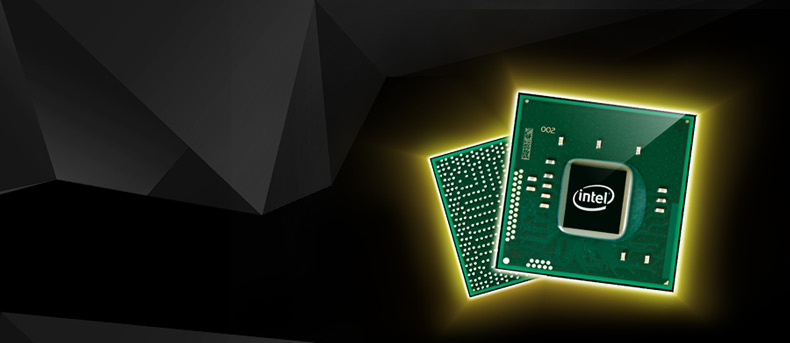

Intel Dual-Core Processor J3355 (Up to 2.5 GHz)


Improved performance, lower power consumption, and new multimedia capabilities.

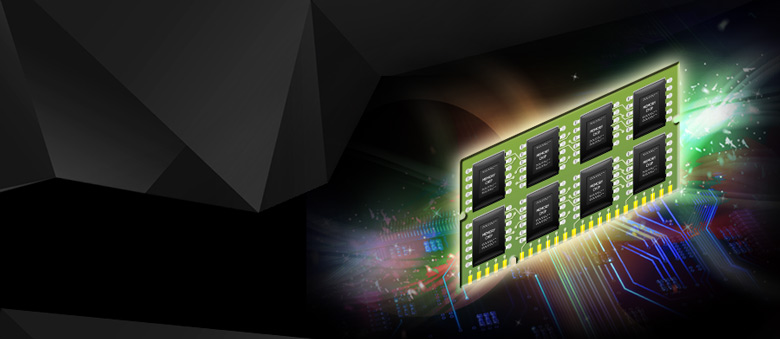

Supports Standard & Low Voltage SO-DIMMs


Capable of supporting both standard and low-voltage SO-DIMMs.

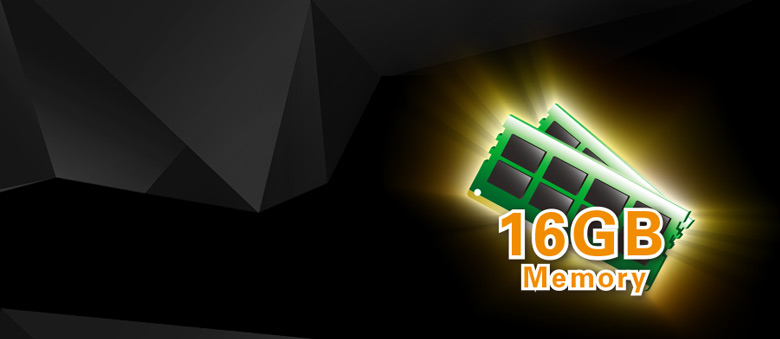

16GB Memory Support


Each slot supports 8GB memory modules, thus delivering a maximum capacity up to 16GB.





Power Gear


Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.

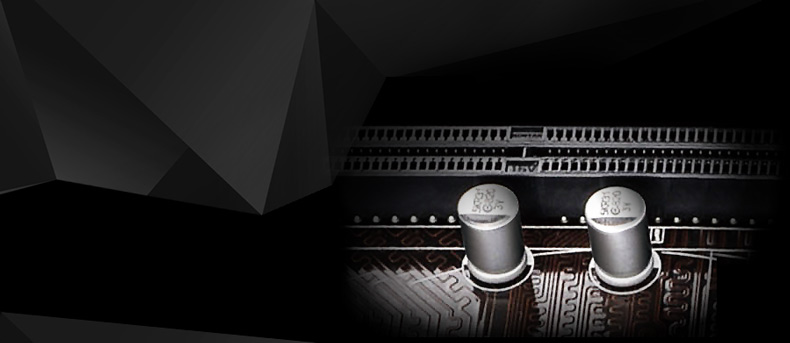

Solid Capacitor Design


ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

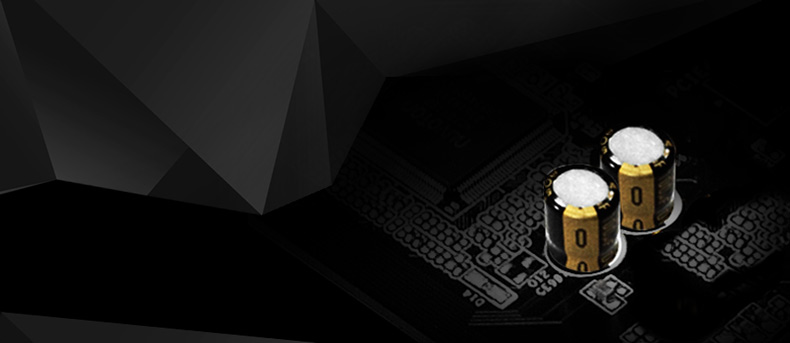

ELNA Audio Caps


Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

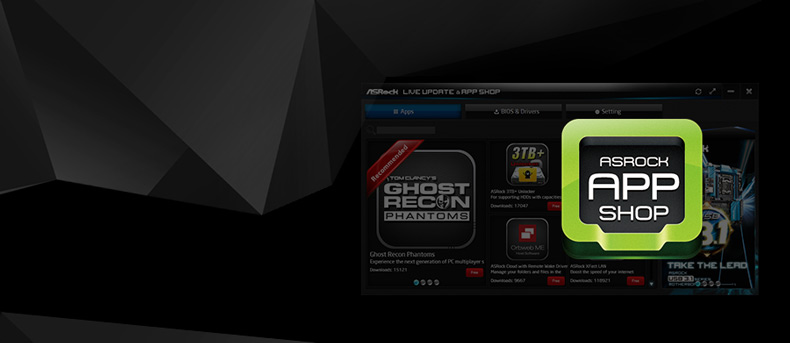

Live Update & APP Shop


ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.







Full Spike Protection


Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.













When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.












This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.












Specifiche


























































































General
Unique FeatureASRock Super Alloy
- High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop
CPU- Intel® Dual-Core Processor J3355 (up to 2.5 GHz)
Memory- Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots*
- Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB**


*2GB DRAM per module is not supported.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 compliant wake up events
- Supports jumperfree
- SMBIOS 3.0 support

Audio, Video and Networking
Graphics- Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 700MHz)
- DirectX 12, Pixel Shader 5.0
- Dual graphics output: support D-Sub and HDMI ports by independent display controllers
- Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
- Supports HDCP with HDMI Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
Audio- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps


*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Expansion / Connectivity
Slots- 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode)
Storage- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector- 1 x COM Port Header
- 1 x Chassis Intrusion Header
- 1 x TPM Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))*


*USB3_1_2 is shared with USB2_3.

Rear Panel I/O- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
- 3 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

Other Features / Miscellaneous
Software and BIOSSoftware
- ASRock Power Gear
- ASRock XFast LAN*
UEFI
- ASRock Power Gear
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS


*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design
OS- Microsoft® Windows® 10 64-bit*
- Linux: Ubuntu 16.10 / Fedora 25


*
For the updated Windows® 10 driver, please visit ASRock's website for details.

Certifications- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)

Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
